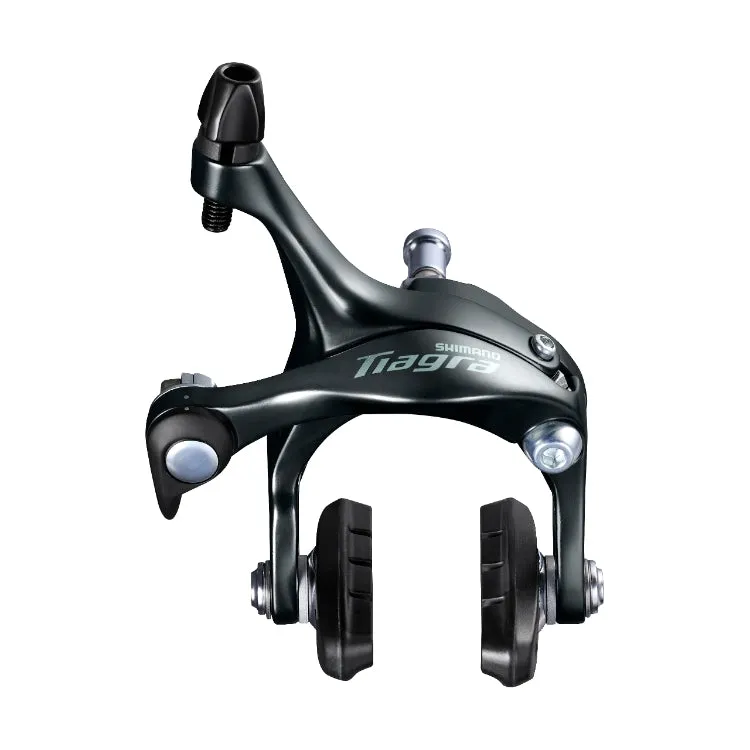

Shimano Tiagra - New Super SLR - Dual-Pivot Brake Caliper - Rim Brake BR-4700
The Shimano Tiagra Dual-Pivot brake caliper provides consistent all-around control. Compatible with 28mm tires, the caliper uses a thrust bearing pivot to reduce friction, while new, toe-in adjustable brake shoes improve braking.
Features
- Consistent all-around control
- 30% greater braking power modulation with Linear brake operation
- One thrust bearing of the pivot reduces caliper friction
- New material adjustable toe-in brake shoes R50T5
- Better performance with Alloy rim under wet condition
- Toe-in adjustable brake shoes
- Compatible with 28C tires.
Specifications
- Model No: BR-4700
- Series: Tiagra 4700 Series
- Color: Series color
- Brake type: New Super SLR Dual Pivot
- Reach (mm): 51
- Brake shoe|Standard: R50T5
- Brake shoe|Optional choice: R50T4
- Compatibility: New Super SLR
- Assembly pivot nut (mm)|Front (mm)|10.5: ✔
- Assembly pivot nut (mm)|Front (mm)|12.5: ✔
- Assembly pivot nut (mm)|Front (mm)|18.0: ✔
- Assembly pivot nut (mm)|Front (mm)|27.0: ✔
- Assembly pivot nut (mm)|Front (mm)|32.0: ✔
- Assembly pivot nut (mm)|Rear (mm)|10.5: ✔
- Quick release lever: ✔
- Shoe angle adjusting: ✔
- Maximum tire size: 28C
- Rim width (mm): 19 - 26 mm
SKU#
| EBR4700A87 | CALIPER BRAKE, BR-4700, TIAGRA F AND R SET, CS51, SUNKEN NUT:10.5MM ADD12.5/18/27/32MM NUT, R50T5 SHOE IND.PACK |
| EBR4700AF87X | CALIPER BRAKE, BR-4700, TIAGRA FRONT, CS51, 27.5MM PIVOT BOLT, SUNKEN NUT:10.5/12.5/18/27/32MM, W/R50T5 SHOE, IND.PACK |
| EBR4700AR87A | CALIPER BRAKE, BR-4700, TIAGRA REAR, CS51, 12.8MM PIVOT BOLT, 10.5MM SUNKEN NUT, W/R50T5 SHOE, IND.PACK |
*Note: Images are for representational purposes only. Actual size/packaging varies with product type/size.
